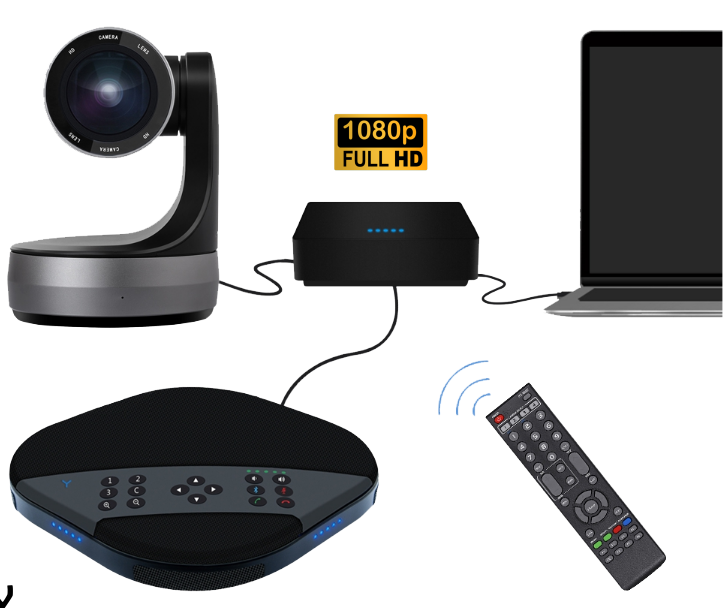

Enhancing Communication and Productivity Purplewave 1080p HD Video Collaboration System is designed to meet the growing demands of businesses, educational institutions, and remote teams, offering high-definition video and audio capabilities in a single, easy-to-use platform.
Highlight Points:
- Crystal-Clear 1080p HD Video
- Integrated Audio Solutions
- Multi-Device Compatibility
- Easy-to-Use Interface
- Screen Sharing and Content Collaboration
- Wide-Angle Camera with PTZ Functionality
Applications:
- Business Meetings
- Remote Work
- Education and Training
- Healthcare Consultations
Specifications
| Camera | PW-HD1080Group VC System | Camera | PW-HD1080Group VC System |
|---|---|---|---|
| Resolution | MJPG
/H.264:320*240
,640*480,
720*576,
1280*720,
1920*1080 YUY2:320*240, 640*480, 720*576,1280*720 |
Image Sensor | SONY 1/2.8" Progressive CMOS |
| Effective Pixels | 3.1 Megapixels | Signal | PAL/NTSC |
| Lens | 12x, f=3.9mm(w) ~46.8mm(T) | Horizontal View Angle | 72.5°(W)~6.5°(T) |
| Focus System | Auto/Manual | Minimum Illumination | 0.5 Lux |
| Shutter | 1/25~1/10000s | Gain | Auto/Manual |
| White Balance | Auto /Manual/ Indoor/ Outdoor/ One push/ ATW | Image Effect | Full color/Image flip |
| S/N Ratio | ≥50db | Pan | 355° (max.speed: 80°/s) |
| Tilt | -30° to +90° (max. speed: 60°/s) | Size | (L)131× (W)131× (H)175mm |
| Omnidirectional Speakerphone | |||
| Voice Technical Parameters | Acoustic echo cancellation (AEC) ≥65dB; Echo length cancellation: ≥500ms Bidirectional noise compression (INC) : ≥25dB Automatic direction finding Technology of Intelligent microphone (EMI) Automatic gain control (AGC) |
Audio parameters | Microphone frequency response: 100Hz-22KHz Speaker frequency response: 100Hz-22KHz, Speaker volume: 90dB at the most Microphone sound-pickup radius: 4 meters, 360 degrees full range |
| Protocol | UVC 1.1 | Expansion Mic (optional) | 2 external microphones optional for connection makes the sound-pickup radius up to 6 meters |
| Dimensions | 180mm×180mm×42mm (L×W×H) | ||
| Hub | |||
| Interface | DIN6 interface × 2, Power interface × 1, Power switch × 1, USB interface × 1 | Power supply | Power plug(DC12V), Adapter input AC100V~ AC240V, output DC12V/2A |
| Data Cable | DIN6 data line × 2; Length: 5m | USB cable | USB cable × 1; Length: 3m |
| Compatibility | Support Windows, Android, iOS and Linux Drive-free automatic recognition of cameras, microphones and speakers. Compatible with Zoom, Lynch, Vidyo, Skype for business and etc. | ||
| Dimensions | 113.6mm× 113.6mm ×32.6mm (L×W×H) | ||
