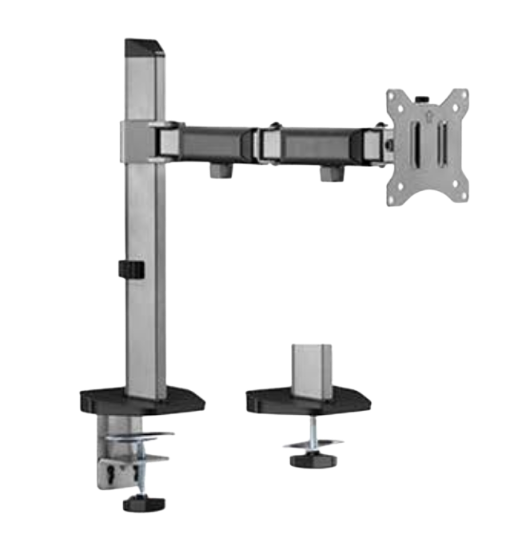

PWT55-C012

One-Stop Mounting Solutions for Office, Home, and Pro A/V Markets Puplewave provides comprehensive one-stop mounting solutions tailored for office, home, and professional A/V markets. Whether you need to mount displays, projectors, speakers, or other equipment, our solutions are designed to meet the highest standards of functionality, aesthetics, and durability.

Highlight Points:
  • Versatile Mounting Options
  • Professional A/V Integration
  • Home Solutions
  • Office Solutions
  • Customizable and Adjustable
  • Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare.

  • 360° Rotary VESA Plate: for more viewing experience.

  • Freely Adjusting Height: for an optimal ergonomic position.

  • Cable Management: keeps everything organized.

  • Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat).

Specifications

Parameter PWT55-C012 Parameter PWT55-C012
Product Category Articulating Monitor Arm Rank Standard
Material Steel, Plastic Surface Finish Powder Coating
Color Space Grey Dimensions 152x505x 540mm (6" x 19.9" x 21.3")
Fit Screen Size 17"-32" Fit Curved Monitor Yes
Screen Quantity 1 Weight Capacity (per screen) 9kg (19.8lbs)
VESA Compatible 75x75, 100x100 Tilt Range +70°~-70°
Swivel Range +90°~-90° Screen Rotation +180°~-180°
Arm Full Extension 380mm (15") Pole Height 422mm (16.6")
Installation Clamp, Grommet Suggested Desktop Thickness Clamp: 10~85mm, Grommet: 10~40mm
Quick Release VESA Plate Yes Cable Management Yes
Anti-theft No Accessory Kit Package Normal/ Ziploc Polybag, Compartment Polybag
