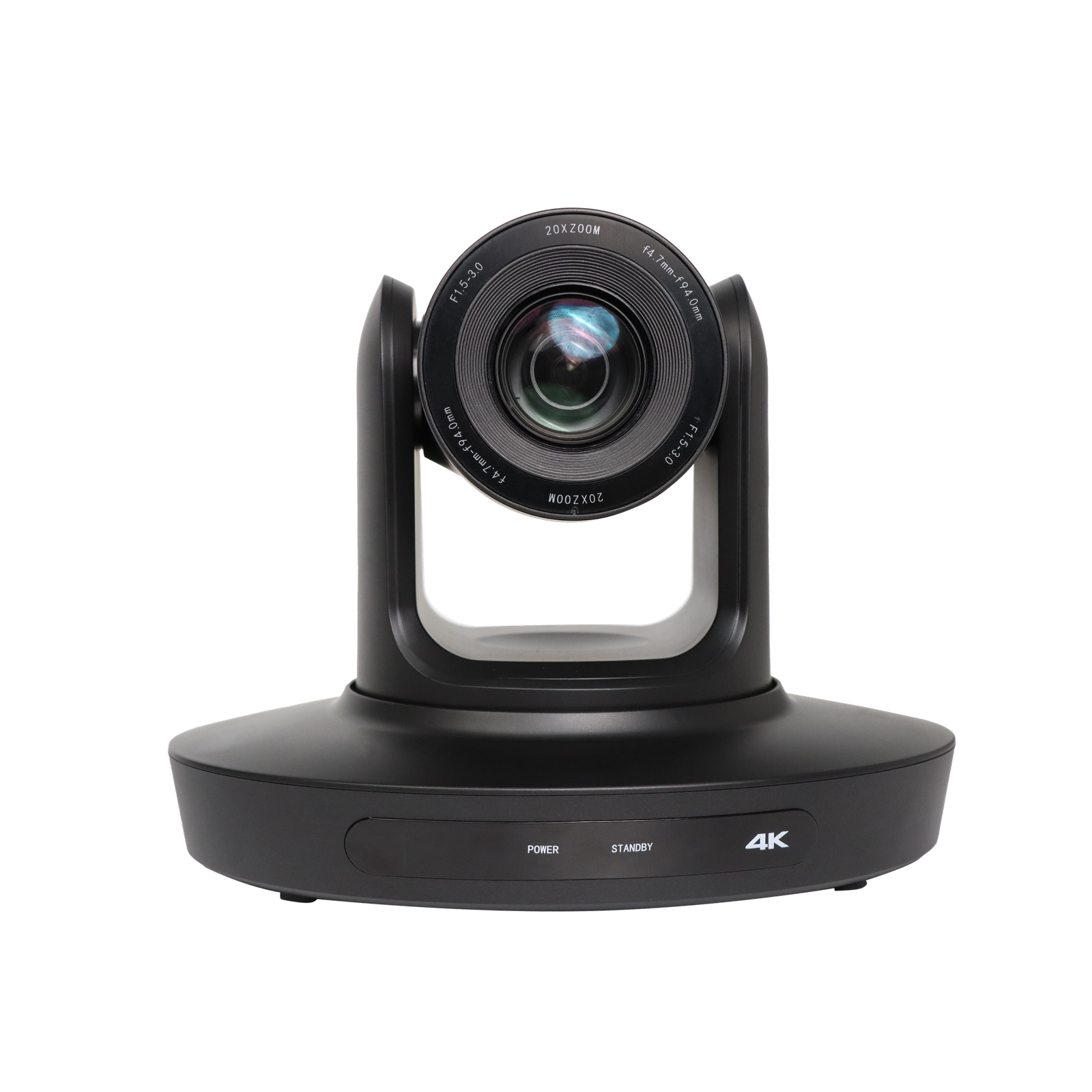

Purplewave PTZ USB camera is an advanced video capture solution designed to meet the diverse needs of both professional and personal users. Equipped with Pan, Tilt, and Zoom functionalities, this camera provides unparalleled flexibility, allowing users to control the camera's movement remotely, capturing a wide range of views with exceptional clarity
Highlight Points:
- Plug-and-Play USB Connectivity
- Remote Control and Automation
- Low-Light Performance
- Wide-Angle Lens
- Pan, Tilt, and Zoom Control
Applications:
- Video Conferencing
- Live Streaming
- Education and Training
Specifications
| Parameter | PW-HD20X | Parameter | PW-HD20X |
|---|---|---|---|
| Resolution | HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 | Image Sensor | SONY 1/2.8" CMOS |
| Pixels | 8.50 Megapixels, 8.29 Effective Megapixels | Scan Mode | Line by line |
| Lens | UH45GQ: 10X Optical Zoom, f=4.2mm(W)~42mm(T) UH45GH: 20X Optical Zoom, f=5.2mm(W)~104mm(T) | Horizontal View Angle | UH45GQ: 67.5°(W)~7.6°(T) UH45GH: 58.7°(W)~3.2°(T) |
| Vertical View Angle | UH45GQ: 40.2°(W)~4.3°(T) UH45GH: 32.2°(W)~1.8°(T) | Focus System | Auto, Manual |
| Shutter Speed | 1/25s ~ 1/10000s | Minimum Illumination | UH45GQ: 0.1 Lux @ (F1.8, AGC ON) UH45GH: 0.1 Lux @ (F1.5, AGC ON) |
| Exposure | Auto, Manual, Iris Priority, Shutter Priority, Brightness priority | White Balance | Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
| Backlight Compensation | Support | Digital Noise Reduction | 2D&3D Digital noise reduction |
| S/N Ratio | ≥50dB | Pan/Tilt | |
| Pan Angle | ±168° | Tilt Angle | -30°~+90° |
| Pan Speed | 1°~60°/s | Tilt Speed | 1°~60°/s |
| Preset Positions | 9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC | Preset Accuracy | 0.1°±10% |
| Flip | Support | POE | 802.3af (Optional) |
| USB Protocol | UVC 1.1 | Operating System | Windows 7 and above, MacOS, Linux, Android |
| Video Compression (USB) | YUY2, MJPEG | Resolution (USB) | 3840x2160, 2560x1440, 1920x1080, 1280x720, 960x540, 800x600, 720x576, 720x480, 640x480, 640x360, 352x288, 320x240 |
| Frame Rate | Max.30 | UVC Control | Support |
| LAN Protocol | TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP | Video Compression (LAN) | H.264, H.265 |
| Code Stream | Main code stream*1 | Main Stream Resolution | 1920x1080 |
| Bitrate Control | VBR, CBR | Audio Compression | AAC |
| Audio Bit Rate | 128kbps | Interface | |
| HDMI Interface | 1 Line, HDMI: Version 1.4 | USB Interface | 1 Line, USB 3.0, Type-B Socket |
| Network Interface | 1 Line, RJ45: 10M/100M adaptive Ethernet port | Audio Interface | 1 Line, Line In, 3.5mm |
