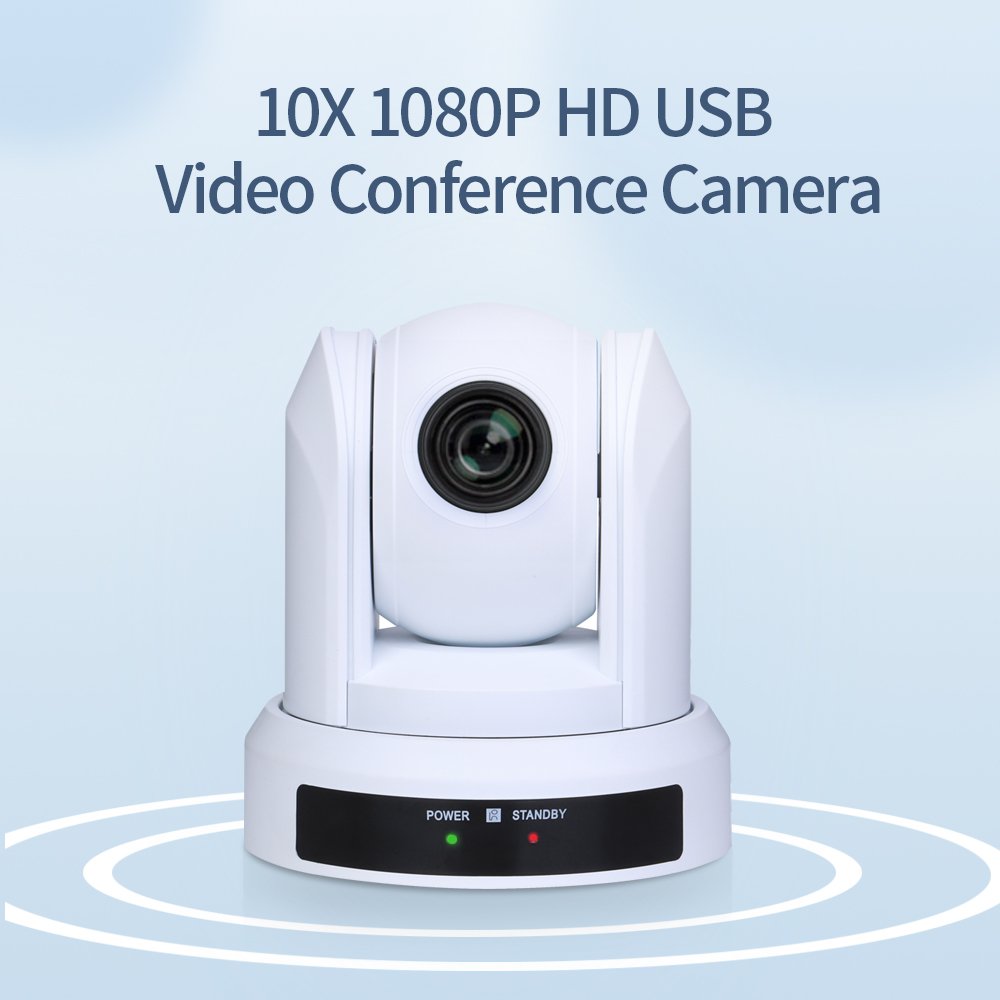

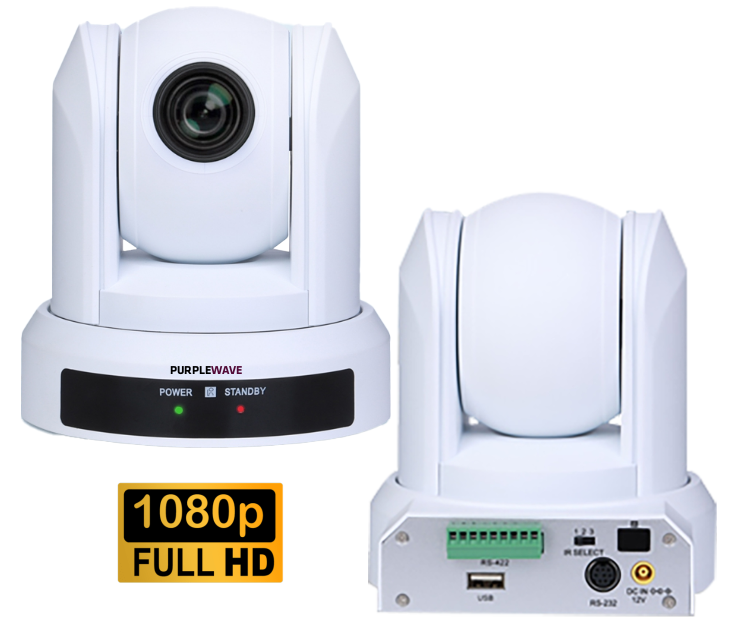

Purplewave PTZ USB camera is an advanced video capture solution designed to meet the diverse needs of both professional and personal users. Equipped with Pan, Tilt, and Zoom functionalities, this camera provides unparalleled flexibility, allowing users to control the camera's movement remotely, capturing a wide range of views with exceptional clarity
Highlight Points:
- Plug-and-Play USB Connectivity
- Remote Control and Automation
- Low-Light Performance
- Wide-Angle Lens
- Pan, Tilt, and Zoom Control
Applications:

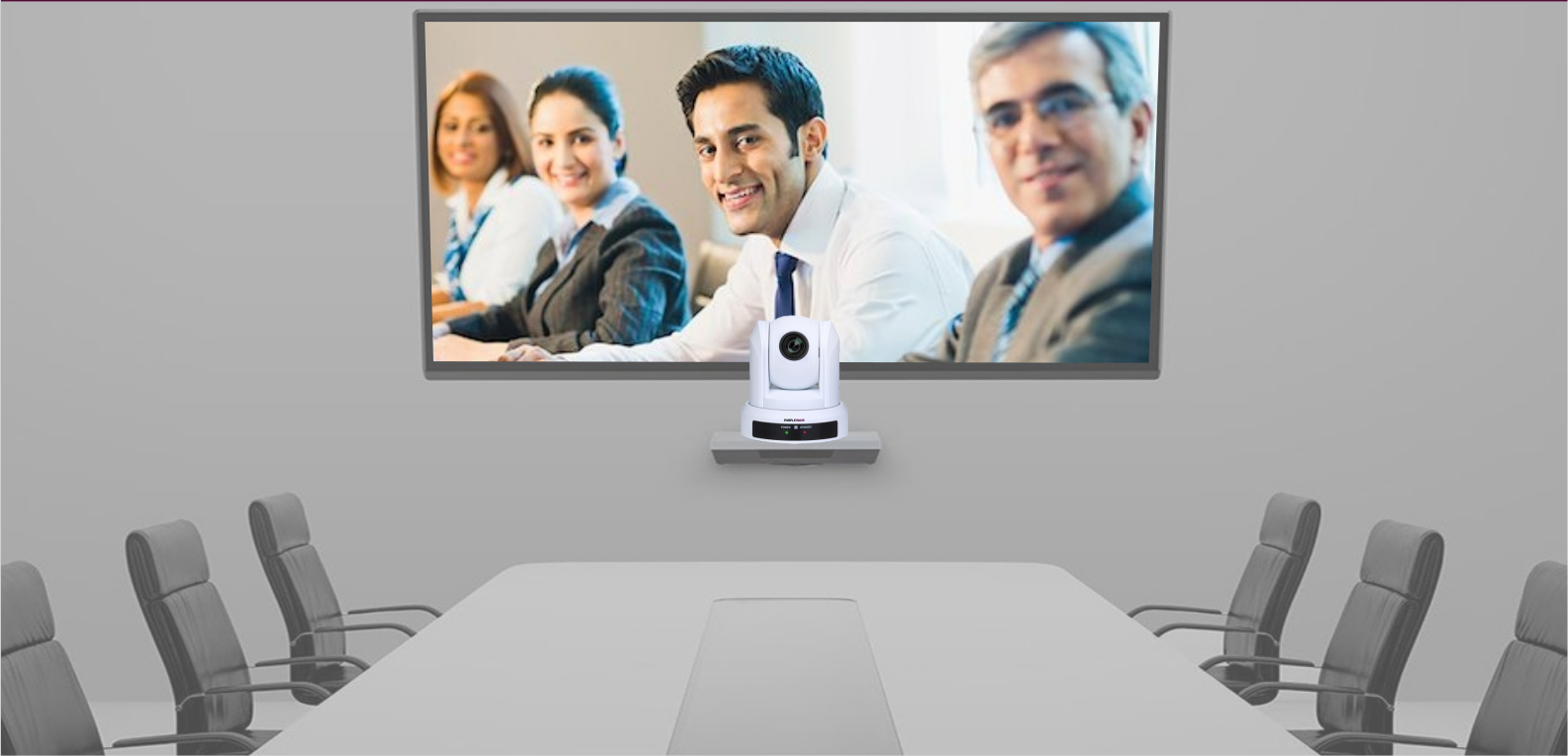

- Video Conferencing
- Live Streaming
- Education and Training
Specifications
| Camera | PTZ 10X USB Camera | Camera | PTZ 10X USB Camera |
|---|---|---|---|
| Resolution | 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360 | Image Sensor | SONY 1/2.8" Progressive CMOS |
| Scan Mode | Line by line | Lens | 31M Fixed Focus, f=2-26mm, 31W 3X optical zoom, f=3.35mm(w) ~10.05mm(f), 31S 10X optical zoom, f=4.7mm(w) ~47.0mm(f) |
| Focus System | HD31M Manual, HD31W/S Auto/Manual | Minimum Illumination | 31M 1.5 Lux, 31W 1.5 Lux, 31S 0.1 Lux |
| Shutter Speed | 1/25s~1/10000s | White Balance | Auto /Manual /One-click /Indoor /Outdoor |
| Backlight | Compensation Support | Digital Noise Reduction | 2D&3D Digital noise reduction |
| S/N Ratio | ≥50dB | Horizontal View Angle | 31M 108°, 31W 99.6°(W)~30.6°(T), 31S 60.9°(W)~6.43°(T) |
| Vertical View Angle | 31M 61°, 31W 56°~17.2°, 31S 34.3°~3.6° | Horizontal Rotation Range | 355° |
| Vertical Rotation Range | -30°~+90° | Horizontal Rotation Speed Range | 1°~60°/s |
| Vertical Rotation Speed Range | 1°~60°/s | Electronic Flip | Support |
| Image Freeze | Support | Preset Position | 9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC |
| Accuracy of Preset Position | 0.1°±10% | ||
| USB Features | |||
| USB | 2.0 | Protocol | UVC1.1 |
| Operating System | Windows7 and above, MacOS, Linux, Android | UVC Video Coding Format | YUY2, MJPEG, H.264, H.265 |
| UVC Video Resolution | 320x240, 640x480, 720x576, 800x600, 1280x720, 1920x1080 and so on | UVC Video Frame Rate | Max.30 |
| UVC PTZ Control | Support | ||
