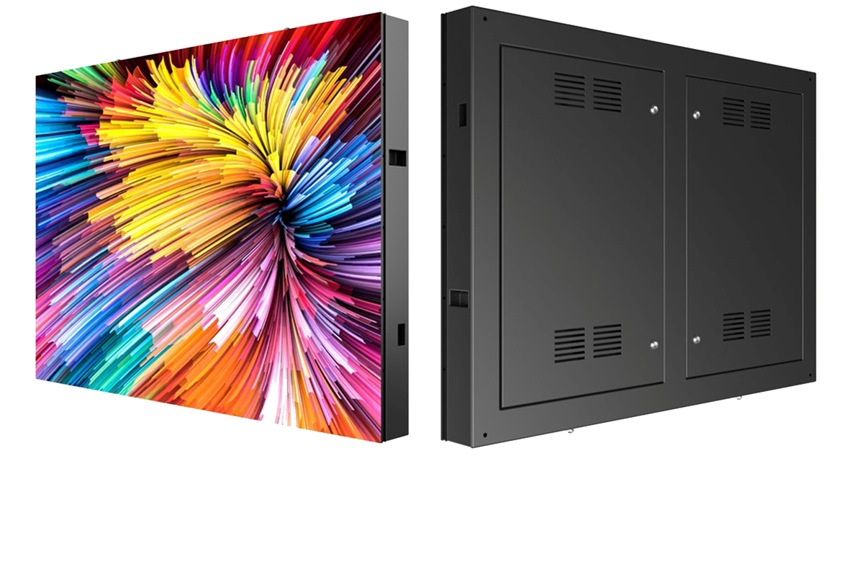

P 4 P5 P6 P10 Active Led Display System

Ready to use Active LED Panel with Superior Quality

Creativity with simplicity, Purplewave is a dedicated category brand specially established by Purplewave for the global LED display channel market based on the development concept of “Ready-to-use LED, to fit your demands”. Purplewave have excellent performance, simple design, flexible splicing, convenient maintenance and other characteristics.

  • Typhoon resistan

  • High temperature resistan

  • High humidity resistan

  • Low temperature resistan

  • Rainstorm resistan

  • Salt fog resistan

Specifications

Parameter P 4 P 5 P 6 P 10
LED Type SMD SMD SMD SMD
Pixel Pitch (mm) 4 5 6.66 10
Panel Dimensions (W*H*D) (mm) 1280x960 1280x960 1280x960 1280x960
Panel Weight (kg) 47 47 47 47
Brightness (nit) 5000 5000 5000 5500
Refresh Rate (Hz) ≥3840 ≥3840 ≥3840 ≥3840
Grayscale (bit) 14 14 14 16
AC Operating Voltage (V) 200~240 200~240 200~240 200~240
Power Consumption (Max./Avg.) (W/m²) 750/250 750/250 750/250 750/250
Module Maintenance Rear Rear Rear Rear
Power Supply & Other Maintenance Rear Rear Rear Rear
Installation Fixed Fixed Fixed Fixed
