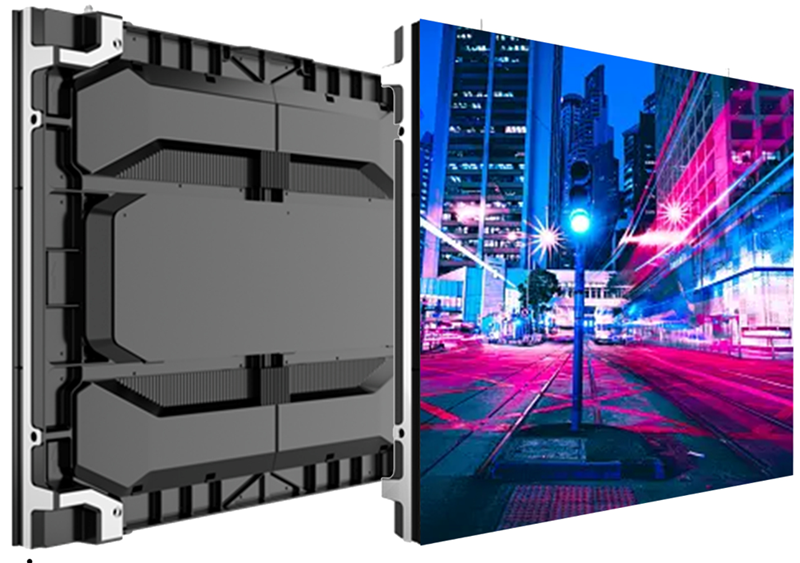

Ready to use Active LED Panel with Superior Quality
Creativity with simplicity, Purple Wave Infocom Ltd is a dedicated category brand specially established by Purple Wave Infocom Ltd for the global LED display channel market based on the development concept of “Ready-to-use LED, to fit your demands”. Purple Wave Infocom Ltd have excellent performance, simple design, flexible splicing, convenient maintenance and other characteristics.
Specifications
| Parameter | P1.8 | Parameter | P1.8 |
|---|---|---|---|
| LED Type | Black SMD1515 | Power Consumption (Max./Avg.)(W/m²) | 540/180 |
| Pixel Pitch (mm) | 1.83 | Storage Temperature (°C) | -40 ~ 60 |
| Panel Dimensions (W*H*D)/(mm) | 640x480x60 | Operating Temperature (°C) | -10 ~ 40 |
| Panel Resolution | 348x261 | Storage Humidity (RH) | 10% ~ 85% |
| Panel Weight (kg) | 7.8 | Operating Humidity (RH) | 10% ~ 80% |
| Panel Material | Die Casting Aluminum | IP Rating (Front/Rear) | IP40/IP21 |
| Module Size (W*H) | 320×160 | LED Lifetime (H) | 100000 |
| Brightness (nit) | 700 | Module Maintenance | Fully front/rear |
| Refresh Rate (Hz) | 1920~3840 | PSU & Other Maintenance | Fully front/rear |
| Grayscale (bit) | 13~14 | Panel Installation Type | Stacking /Wall-mounting /Hanging |
| Contrast Ratio | 4000:01:00 | Color Temperature (K) | 6500 |
| Viewing Angle (H/V) (°) | 160/160 | Drive Mode | 1/29 |
| AC Operating Voltage (V) | 200~240 |
