P 1.2 Active LED

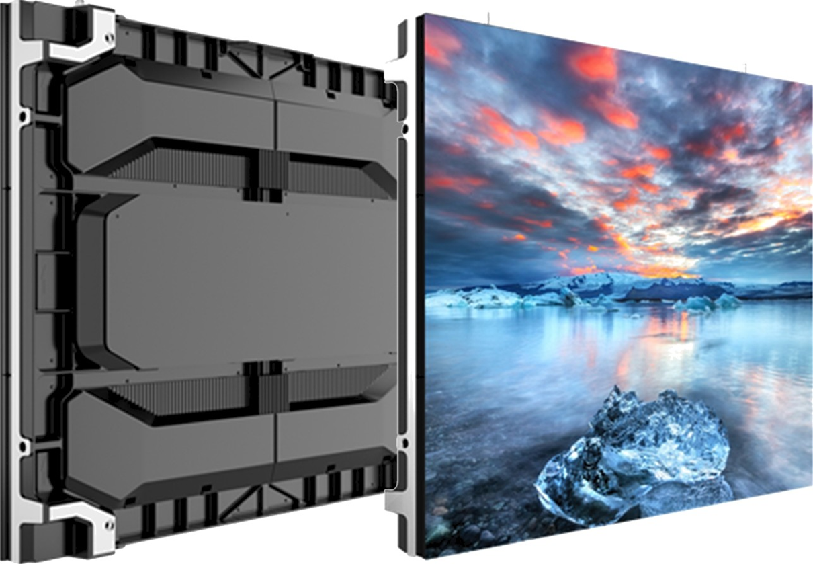

Ready to use Active LED Panel with Superior Quality

Creativity with simplicity, Purplewave is a dedicated category brand specially established by Purplewave for the global LED display channel market based on the development concept of “Ready-to-use LED, to fit your demands”. Purplewave have excellent performance, simple design, flexible splicing, convenient maintenance and other characteristics.

  • Ready-to-use panel

  • Vivid performance

  • Flexible splicing

  • Quick installation & service

Specifications

Display P1.2 Display P1.2
LED Type Black SMD1010 Pixel Pitch (mm) 1.25
Panel Dimensions (W*H*D) (mm) 640x480x60 Panel Resolution 512x384
Panel Weight (kg) 7.8 Panel Material Die Casting Aluminum
Module Size (W*H) 320x160 Brightness (nit) 600
Refresh Rate (Hz) 1920~3840 Grayscale (bit) 13~14
Contrast Ratio 4000:01:00 Color Temperature (K) 6500
Viewing Angle (H/V) (°) 140/140 Drive Mode 1/32
AC Operating Voltage (V) 200~240 Power Consumption (Max./Avg.) (W/m²) 582/194
Storage Temperature (°C) -40° ~ 60° Operating Temperature (°C) -10° ~ 40°
Storage Humidity (RH) 10% ~ 85% Operating Humidity (RH) 10% ~ 80%
IP Rating (Front/Rear) IP40/IP21 LED Lifetime (H) 100000
Module Maintenance Fully front/rear PSU & Other Maintenance Fully front/rear
Panel Installation Type Stacking/Wall-mounting/Hanging
