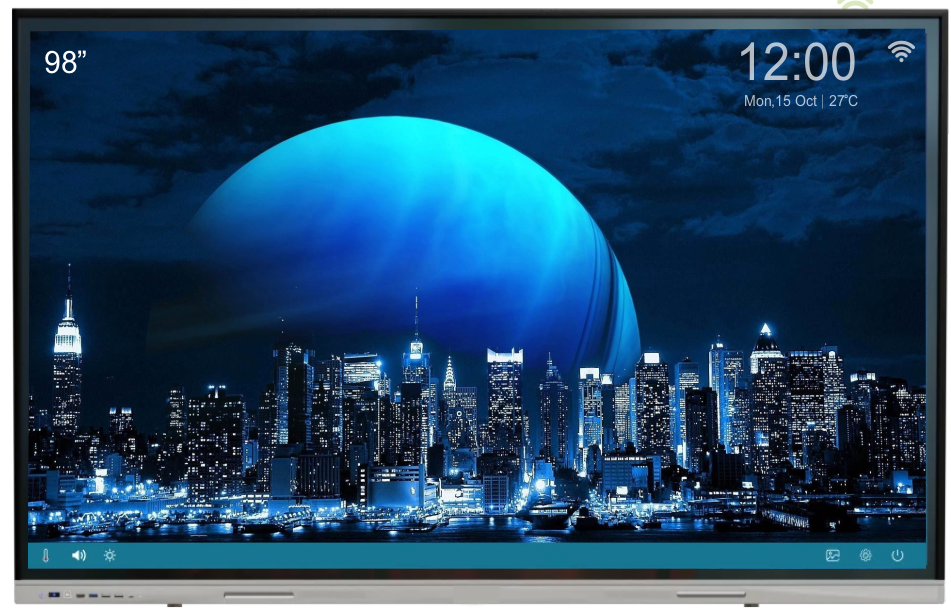

PURPLEWAVE Interactive Touch Displays are large touchscreen displays designed for use in educational, corporate, and professional settings. They combine the features of a high-resolution display with the interactive capabilities of a touchscreen, enabling users to interact directly with the content.
Specifications
| Parameter | PWD98TRX | Parameter | PWD98TRX |
|---|---|---|---|
| Diagonal Size | 98" | Bonding Technology | Zero Bonding |
| Aspect Ratio | 16:9 | Pixel Pitch | 0.5622 (H) X 0.5622 (W) |
| Response | ≤5ms | Resolution | 3840 x 2160 pixels |
| Contrast Ratio | 5000:1 Dynamic, 1200:1 Static | Brightness (cd/m2) | 450cd/m² ±5% |
| Display Area | 2158.85(H) x 1214.35mm(V) | Color | 16.7 million colors |
| View Angle | H:178° V:178° | LED Lifespan | 60,000+ hours |
| OS | Android 11 (Upgradable to Android 13) | CPU | Amlogic T982, Quad-core ARM Cortex-A55 CPU, 1.9GHz |
| GPU | Mali-G52 MP2 (2EE) | RAM | 8GB |
| Storage | 128GB | Rear Input | HDMI2.0 x 2, USB3.0 x 1, USB2.0 x 2, SPDIF x 1, Rs232 x 1, Touch USB x 1, Rj45 |
| Front Input | USB 3.0 x 3 (Both work on Android and OPS) | Speaker | 2 x 20W |
| CPU Option | Core i3 / Core i5 / Core i7 | RAM Option | 4GB, 8GB, 16GB |
| Hard Disk | SSD 128GB~2TB or HDD 500GB~4TB | I/O Port | USB2.0X2, USB3.0X2, MICX1, LINE OUTX1, RJ45X1, VGAX1, HDMIX1 |
| Panel Dimensions | 2225.7mm x 1308.4mm x 91.8mm (W x H x D) | Packed Dimensions | 2380mm x 245mm x 1455mm |
| VESA Mount Point mm | 640 x 460 | Power Requirements | AC 100 ~ 240V / 60~50Hz |
| Operating Temperature | 0°C to 40°C(32°F to 104°F) | Storage Temperature | -15° to 55°C(-5°F to 131°F) |
