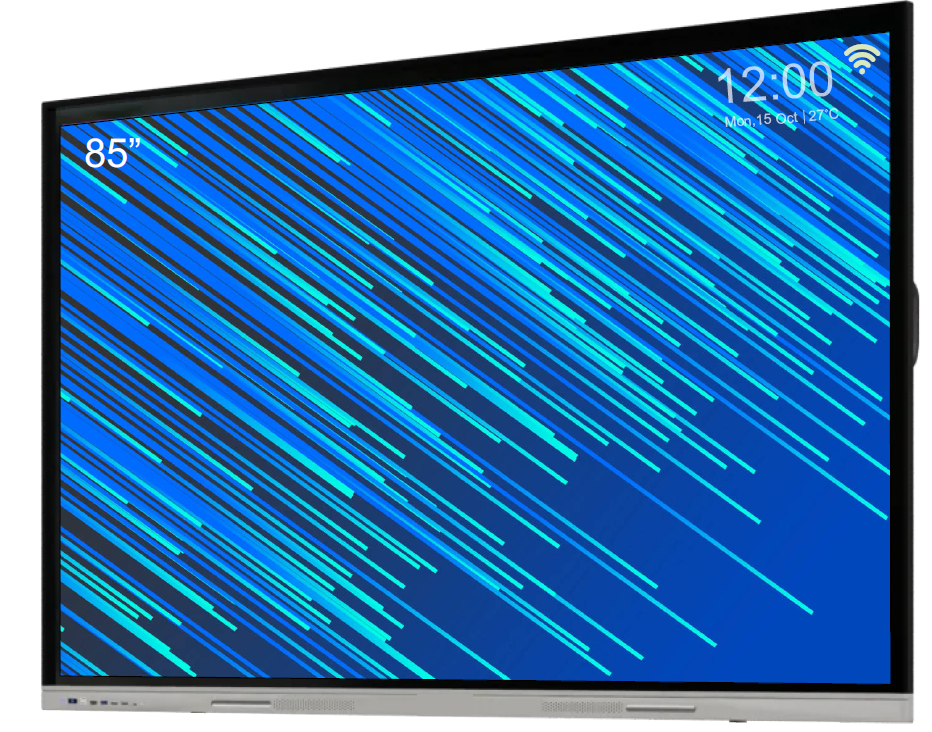

Purple wave Interactive Touch Displays are large touchscreen displays designed for use in educational, corporate, and professional settings. They combine the features of a high-resolution display with the interactive capabilities of a touchscreen, enabling users to interact directly with the content.
Specifications
| Parameter | PWD85TRX | Parameter | PWD85TRX |
|---|---|---|---|
| Screen Size | 85" | Resolution | 3840 x 2160 |
| Bonding Technology | Zero Bonding | Display Orientation | Landscape |
| Screen Type | TFT LCD (Direct-LED Backlight) | Blue Light Reduction | Yes |
| Pixel Pitch | 0.4928(W) x 0.4928(H) | Aspect Ratio | 16:9 |
| Display Area | 1872mm (W) x 1053mm (H) | LCD Viewing Angle | 178° H/V |
| Response | 8ms | Refresh Rate | 60Hz |
| LED Lifespan | 60,000+ Hours | Contrast Ratio | 5000:1 Dynamic, 1200:1 Static |
| Brightness | 450 cd/m² (±5%) | Glass Hardness | 9H (Pencil), 7 (Mohs) |
| Glass Type | Heat tempered, Anti-Glare | Touch Type | Infrared touch, 20 points (Android), 40 points (Windows) |
| Response Time | ≤5ms | Touch Object | All Opaque objects, such as Finger, pen etc. |
| Operating System | Android 13 | RAM | 8GB |
| Internal Storage | 128GB | CPU | Amlogic T982, Quad Core ARM Cortex-A55 CPU, 1.9 GHz |
| GPU | Mali-G52 MP2 (2EE) | UI Language | English, Hindi, Gujarati, Kannada, Telugu |
| Video / Picture Decoding | - Independent JPEG and H.264 encoder with configurable - H.264 video encoding up to 1080p@30fps with low latency |
Dual Speakers | 2 x 20W |
| LAN (RJ45) | 10/100Mbps | Wake-on-LAN | Yes |
| Wi-Fi | IEEE802.11a/b/g/n/ac, 2.4G, 5G | Bluetooth | 5.0 |
| Power Requirements | 100V ~ 240V AC, 50/60HZ | Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -15°C to 55°C (-5°F to 131°F) |
