Interactive Touch Display PWD55TRX

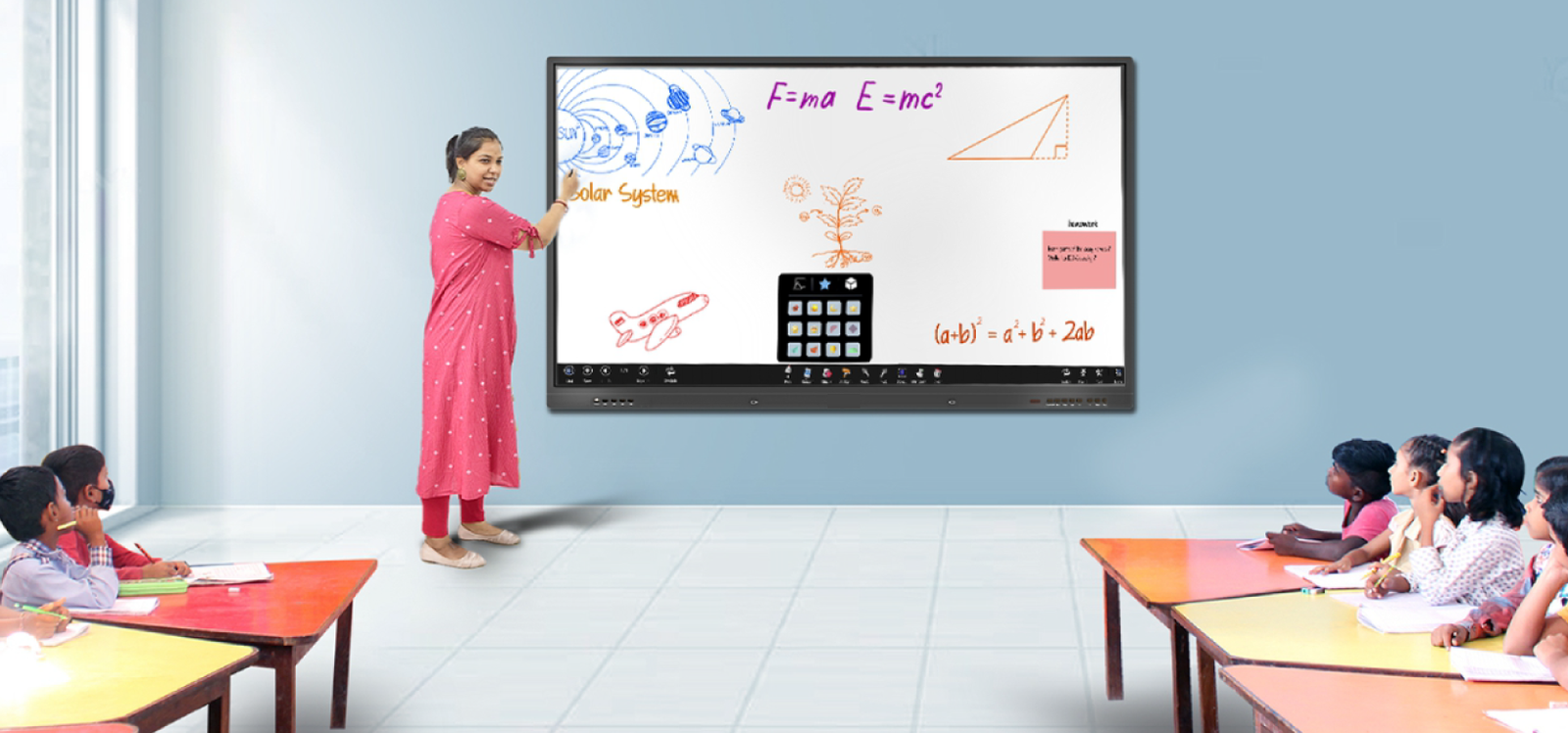

PURPLEWAVE Interactive Touch Displays are large touchscreen displays designed for use in educational, corporate, and professional settings. They combine the features of a high-resolution display with the interactive capabilities of a touchscreen, enabling users to interact directly with the content.

  • TrueBoard

  • Setting

  • Multi Screen

  • Office

  • Browser

  • More Apps

Specifications

Display PWD55TRX Display PWD55TRX
Screen Size 55" Resolution 3840 x 2160
Bonding Technology Zero Bonding Display Orientation Landscape
Screen Type TFT LCD (Direct-LED Backlight) Blue Light Reduction Yes
Pixel Pitch 0.28(W) x 0.28 (H) Aspect Ratio 16:9
Display Area 1209.6mm (W) x 680.4mm (H) LCD Viewing Angle 178° H/V
Response 8ms Refresh Rate 60Hz
LED Lifespan 60,000* Hours Contrast Ratio 5000:1 Dynamic, 1200:1 Static
Brightness 450 cd/m² (±5%) Glass Hardness 9H (Pencil), 7 (Mohs)
Glass Type Heat tempered, Anti-Glare Touch Type Infrared touch, 20 points touch (Android), 40 points (Windows)
Response Time ≤5ms Touch Object All Opaque object, such as Finger, pen etc.
Operating System Android 13 RAM 4GB
Internal Storage 32GB CPU Amlogic T982, Quad Core ARM Cortex-A55 CPU, 1.9 GHz
GPU Mali-G52 MP2 (2EE) UI Language English, Hindi, Gujrati, Kannada, Telugu
Video / Picture Decoding - Independent JPEG and H.264 encoder with configurable
- H.264 video encoding up to 1080P@30fps with low latency
Dual Speakers 2 x 15W
LAN in(RJ45) 10/100Mbps Wake-on-LAN Yes
Wi-Fi IEEE802.11A/b/g/n/ac, 2.4G, 5G Bluetooth 5.0
Power Requirements 100V ~ 240V AC, 50/60HZ Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -15° to 55°C(-5°F to 131°F)

Downloads

Brochure
