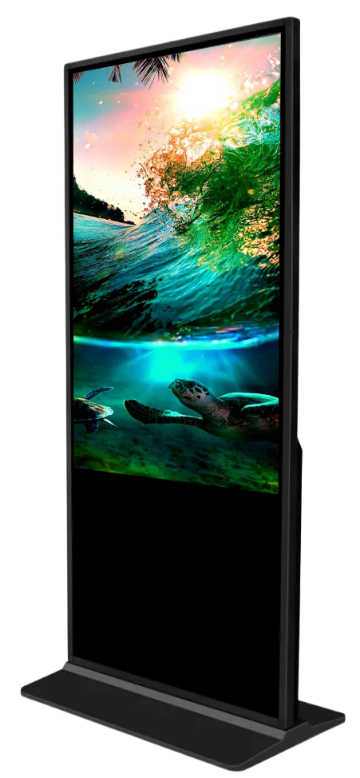

Digital Kiosk PWD55NTK

KIOSK brings automation to life, transforming operational efficiency and elevating daily customer experiences.We streamline complete and connected solutions with unparalleled development, manufacturing, and support.

  • Metallic Body Appearance.

  • Light weight body with integrative design. The front high-transmittance tempered glass provides reliable protection.

  • Variable Materials.

  • Static and dynamic materials, including pictures, audio, video, scrolling subtitle, PDF, web page, live video, pop-up pictures, etc.

  • Flexible Program Schedule.

  • Free schedule and district display of multiple material.

  • Multiple play modes with customization support.

  • Centralized Management.

  • Remotely control and manage one or more screens, such as timed startup/shutdown, quick startup/shutdown.

  • Remote program release and local (USB) program update.

  • Brightness/volume timed adjustment, and screen shot preview.

Specifications

Parameter PWD55NTK Parameter PWD55NTK
Screen Size (Diagonal) 55 inch Native Resolution 1920 × 1080
Aspect Ratio 16:9 Brightness 400 cd/m²
Contrast 1200:1 View Angle 178°(H) / 178°(V)
Display Color 16.7M Operation Duration 7*24 Hours
Response Time 8ms Life Time (Light Source) 50,000 Hrs (Min.)
CPU RK3288 Cortex-A17 1.8GHZ Memory 2G
Storage 8G O/S Android 7.1
Interface HDMI IN *1, USB*2, RJ45*1 External Control IR Ext (1)
Speaker 2 × 10W (8Ω) Networks LAN, WIFI
Power Supply AC 100~240V 50/60Hz Power Consumption ≤ 100W
Operation Temperature 0℃~40℃ Operation Humidity 20%~80% RH
Color Black/Metal Tempered Glass Yes
Body Dimension w/o Stand 1899.9(H)* 757(W)*29.2 mm(D) Body Dimension with Stand 1959.9(H)* 764(W)*450 mm(D)
