Adhesive Transparent LED Displays for Digital Innovation

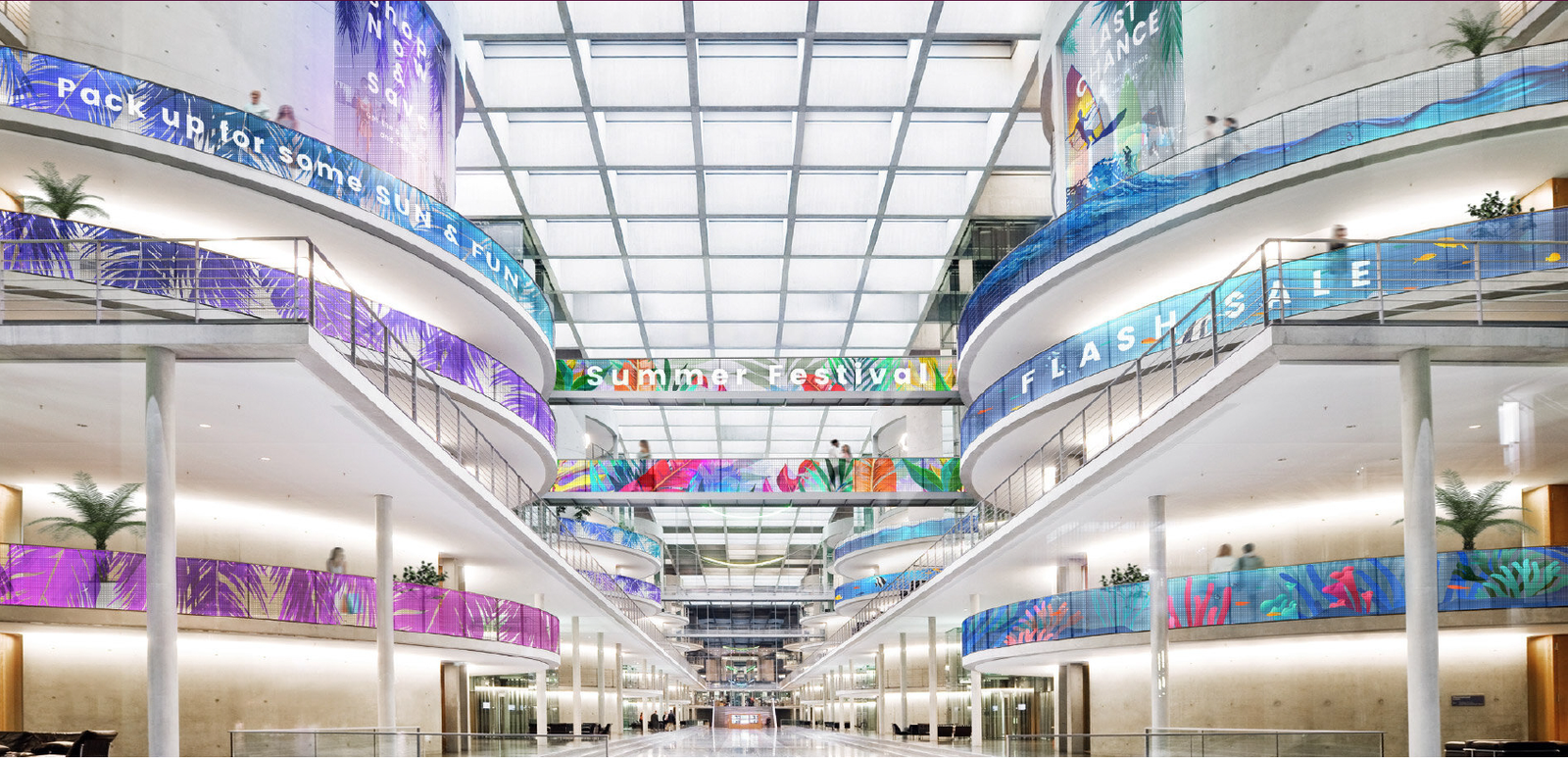

Purple Wave Infocom Ltd Transparent LED displays are innovative screens that allow viewers to see through the display while still viewing vibrant content. These displays are used in a variety of applications, combining cutting-edge technology with stunning visual effects.
Specifications
| Model | P6 | Model | P6 |
|---|---|---|---|
| Pixel Pitch | 6mm*6mm (x*y) | Pixel | 27889 points/m² |
| LED Specification | SMD2121 (light drive in one) | Pixel Composition | 1R1G1B |
| Module Size | 1000mm*240mm | Module Resolution | 167*40 |
| Pixel Resolution | 167*167/m² | Permeability | ≥85% |
| Box Wiring Mode | Internal wiring (clean back) | Weight | ≤ 4KG/pcs |
| White Balance Brightness | ≥1000cd/m² | Peak Power Consumption | 400 W/m² |
| Average Power Consumption | About 200 W/m² (depending on the video source) | Refresh Frequency | ≥3840s |
| Grayscale Level | 16Bit | Brightness Control Level | Grade 0-255 |
| Color Temperature | 3200K-8500K (adjustable) | Frame Change Frequency | ≥60Hz |
| Viewing Angle | H-H140 degrees, V-V140 degrees | Input Signal | DVI, VGA, composite video |
| Control Screen Mode | Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen) | Protection Grade | IP30 |
| Power Supply Requirements | AC 220V ± 10%, 50-60Hz (optional wide voltage 110V and 9-36V) | Working Temperature | -20~50 ºC |
| Theoretical Service Life | 100000 hours | ||
